Cast iron centrifugal pumps are workhorses in many industries, prized for their durability, cost-effectiveness, and reliability in handling a wide range of fluids. These pumps utilize rotational energy, typically from an electric motor, to impart velocity to a fluid, which is then converted into pressure energy. Understanding their capabilities, applications, and selection criteria is crucial for any operation relying on efficient fluid transfer.
AMEE PUMPS INDUSTRIES, established in 2009 and based in Ahmedabad, Gujarat, India, is a manufacturer and exporter specializing in various pump types, including robust cast iron centrifugal pumps designed for demanding industrial environments. Their expertise ensures that operations can find reliable solutions for critical fluid handling processes.
Understanding Cast Iron Centrifugal Pumps
A centrifugal pump operates on the principle of centrifugal force. An impeller, a rotating component with vanes, is housed within a casing. As the impeller spins, it draws fluid into the pump's eye (center) and accelerates it outwards towards the casing periphery. The casing, often volute-shaped, is designed to slow down the fluid's velocity, converting the kinetic energy into pressure energy. This pressure then drives the fluid out of the discharge port.
The choice of cast iron as the primary material for the pump casing and impeller is significant. Cast iron offers a compelling balance of mechanical strength, corrosion resistance (especially for neutral or mildly corrosive fluids), and affordability compared to exotic alloys or stainless steel. This makes cast iron centrifugal pumps an economical yet dependable choice for numerous general industrial applications.
Key components include the impeller, casing, shaft, mechanical seal, and bearing housing. The impeller's design (open, semi-open, or closed) influences its performance with different fluid types, particularly those containing solids. The mechanical seal is vital for preventing leaks along the rotating shaft, with high carbon-ceramic seals being a common, durable option.
Diverse Applications Across Industries
The versatility of cast iron centrifugal pumps allows them to serve a broad spectrum of industries and applications. Their ability to handle various fluids, coupled with their robust construction, makes them indispensable for efficient material handling. âš™ï¸
General Industrial Processes
Transferring water, coolants, lubricants, and other process fluids in manufacturing plants.
Chemical and Petrochemical Industries
Handling a wide range of chemicals, solvents, dyes, and mildly acidic or alkaline solutions where material compatibility is key.
Manufacturing and HVAC
Circulating water for heating, ventilation, and air conditioning systems, and for machinery cooling.
Agriculture and Irrigation
Pumping water for irrigation, drainage, and livestock watering systems.
Key Benefits of Choosing Cast Iron Centrifugal Pumps
Opting for a cast iron centrifugal pump from a reputable manufacturer like AMEE PUMPS INDUSTRIES brings several tangible advantages to your operations:
- Durability and Longevity: Cast iron offers excellent resistance to wear and tear, ensuring a long service life even in demanding conditions.
- Cost-Effectiveness: It provides a strong performance-to-cost ratio, making it an economical choice for many applications without compromising reliability.
- Corrosion Resistance: Suitable for many common industrial fluids, including water, mild chemicals, and solvents, preventing premature degradation.
- Robust Construction: The inherent strength of cast iron allows the pump to withstand moderate operating pressures and temperatures effectively.
- Wide Availability: Cast iron centrifugal pumps are widely manufactured and available, offering a broad selection of models and configurations.
- Ease of Maintenance: With standard designs and readily available parts, maintenance and repair are generally straightforward.
Selecting the Right Cast Iron Centrifugal Pump
Choosing the appropriate cast iron centrifugal pump involves carefully considering several factors to ensure optimal performance and longevity. It's not just about selecting a pump; it's about finding the right solution for your specific fluid handling challenge.
Buyer Insight:
Always verify the pump's material compatibility with the specific fluid being handled, especially if it involves aggressive chemicals or high temperatures, even if cast iron is generally suitable for many common industrial liquids.
Key Selection Criteria:
- Flow Rate (Capacity): The volume of fluid the pump needs to move per unit of time (e.g., liters per minute, gallons per minute).
- Head (Pressure): The total equivalent height that a fluid will rise due to the pressure it is under. This includes static head, friction head, and velocity head.
- Fluid Properties: Consider viscosity, temperature, presence of solids (size, concentration), and chemical composition to ensure the pump and seal are appropriate.
- Motor Power and Type: Select appropriate horsepower (HP) and ensure the motor specifications (voltage, phase, enclosure type) match your site conditions. Amee Centrifugal Pumps, for example, can be specified with motors like a 15 HP option.
- Pump Mounting: Decide between horizontal or vertical mounting based on space constraints and application requirements.
- Suction and Discharge Sizes: Ensure these match your piping system dimensions.
- Seal Type: High carbon-ceramic seals are common, but specific applications might require different materials or configurations.
Important Features to Look For:
- Impeller Design: Open, semi-open, or closed impellers have different efficiencies and capabilities for handling solids.

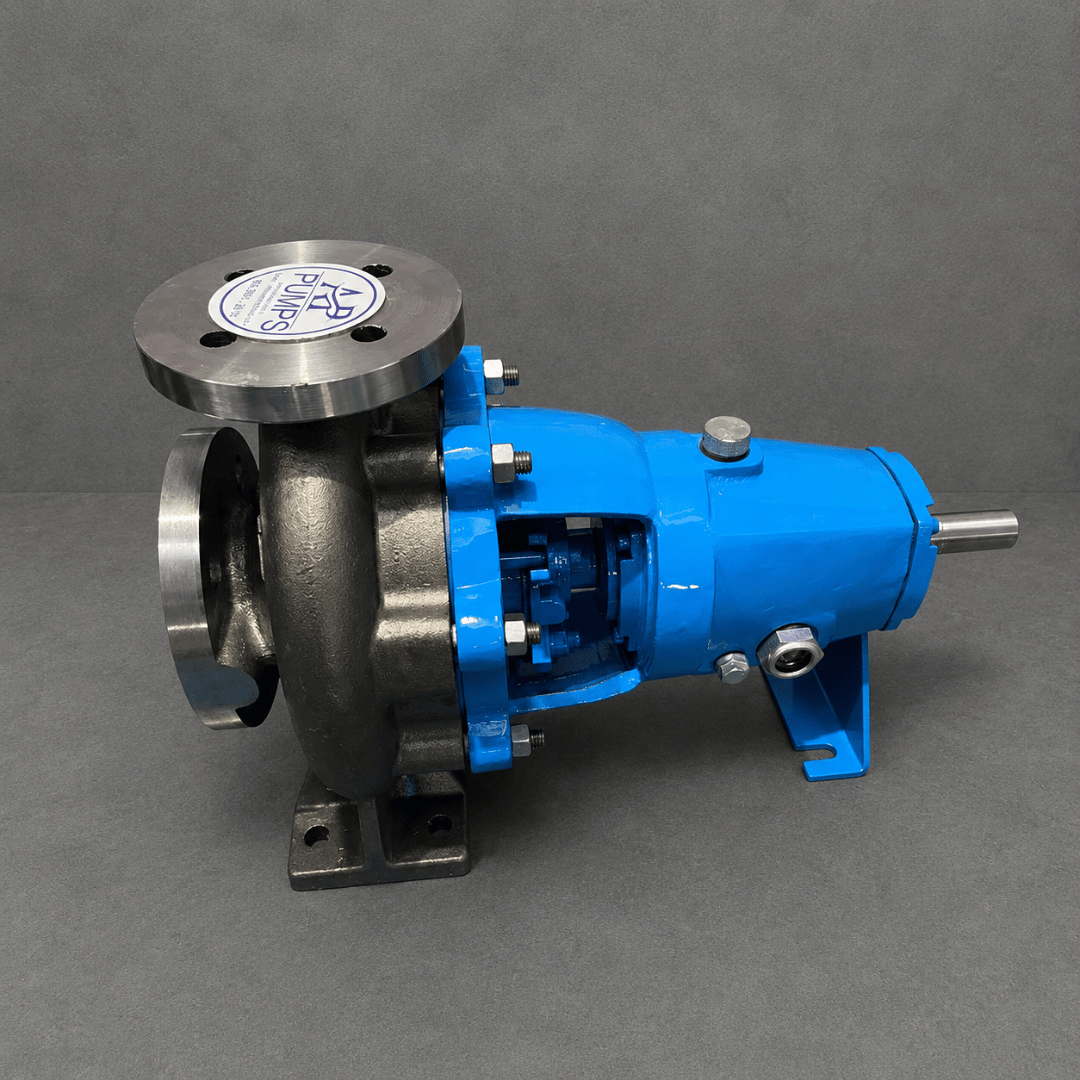

- Back Pull-Out Design: This feature, common in many centrifugal pumps including some offered by AMEE PUMPS INDUSTRIES, allows for easier maintenance as the motor and wet end can be removed without disturbing the piping.
- Robust Casing: A thick-walled, well-cast iron casing is essential for durability.
- Quality Shaft: Typically made from materials like SS410 or EN8 for strength and corrosion resistance.
Questions to Ask Before Buying:
To ensure you procure the most suitable pump, consider asking potential suppliers:
- What is the recommended operating range for this specific cast iron centrifugal pump model?
- Can you provide a performance curve for this pump?
- What are the standard materials for the impeller and shaft?
- What type of mechanical seal is used, and are alternative options available?
- What is the recommended maintenance schedule for this pump?
- Can this pump handle fluids with suspended solids? If so, up to what concentration and size?
AMEE PUMPS INDUSTRIES: Your Partner for Quality Pumps
Established in 2009 in Ahmedabad, Gujarat, India, AMEE PUMPS INDUSTRIES has built a reputation as a dedicated manufacturer and exporter of a comprehensive range of pumps. Their commitment extends to providing reliable cast iron centrifugal pumps, alongside specialized options like chemical process pumps that can be constructed with cast iron materials.
With a focus on delivering effective fluid transfer solutions, AMEE PUMPS INDUSTRIES offers pumps tailored to various industrial needs. They pride themselves on a 100% success rate on projects, underscoring their dedication to customer satisfaction and performance. Whether you require a standard centrifugal pump or a more specialized solution, their expertise ensures you receive a product designed for efficiency and durability.
AMEE PUMPS INDUSTRIES' product line includes models such as the Amee Centrifugal Pump, available with robust motor options like a 15 HP unit, demonstrating their capability to meet substantial industrial demands.
Frequently Asked Questions (FAQ)
What makes cast iron a suitable material for centrifugal pumps?
Cast iron offers a good combination of mechanical strength, durability, and cost-effectiveness, making it an excellent choice for pump casings and impellers in many industrial applications. It also provides reasonable resistance to corrosion for common industrial fluids.
Can cast iron centrifugal pumps handle corrosive fluids?
While cast iron is resistant to many common industrial fluids and mildly corrosive substances, it is not suitable for highly aggressive chemicals, strong acids, or alkaline solutions. For such applications, materials like stainless steel, Alloy 20, or Hastelloy would be more appropriate.
What is the difference between an open and a closed impeller in a cast iron centrifugal pump?
An open impeller has no shrouds and is best suited for clean, non-viscous liquids. A semi-open impeller has one shroud, and a closed impeller has shrouds on both sides. Closed impellers are generally more efficient for clean liquids and are less prone to clogging than open impellers when handling fluids with some solids.
How does AMEE PUMPS INDUSTRIES ensure the quality of their cast iron centrifugal pumps?
AMEE PUMPS INDUSTRIES emphasizes quality in their manufacturing processes and aims for a 100% success rate on projects. They focus on robust construction and reliable performance, ensuring that their pumps meet the demands of industrial applications. Customers can inquire about specific quality checks and material certifications relevant to their order.
