Air Cooled Pump
Technical Specification
- Head: Up To 100 Meter
- Capacity: Up To 100 m³ / Hour
- RPM: 1450 / 2880 RPM
- Pump Size: 25 MM To 200 MM
- Speed Range: 1440 / 2900 RPM
- Temperature: Up To 350°C
- Pressure: Up To 8 kg/cm²
- Sealing: High Temperature Sealing Fitted Pump
- Material of Construction: CS, SS 316, SS 304
- Applications: Hot Oil Transfer, Food Industries, Boiler Applications, Thermic Fluid Applications, Hot Water Applications

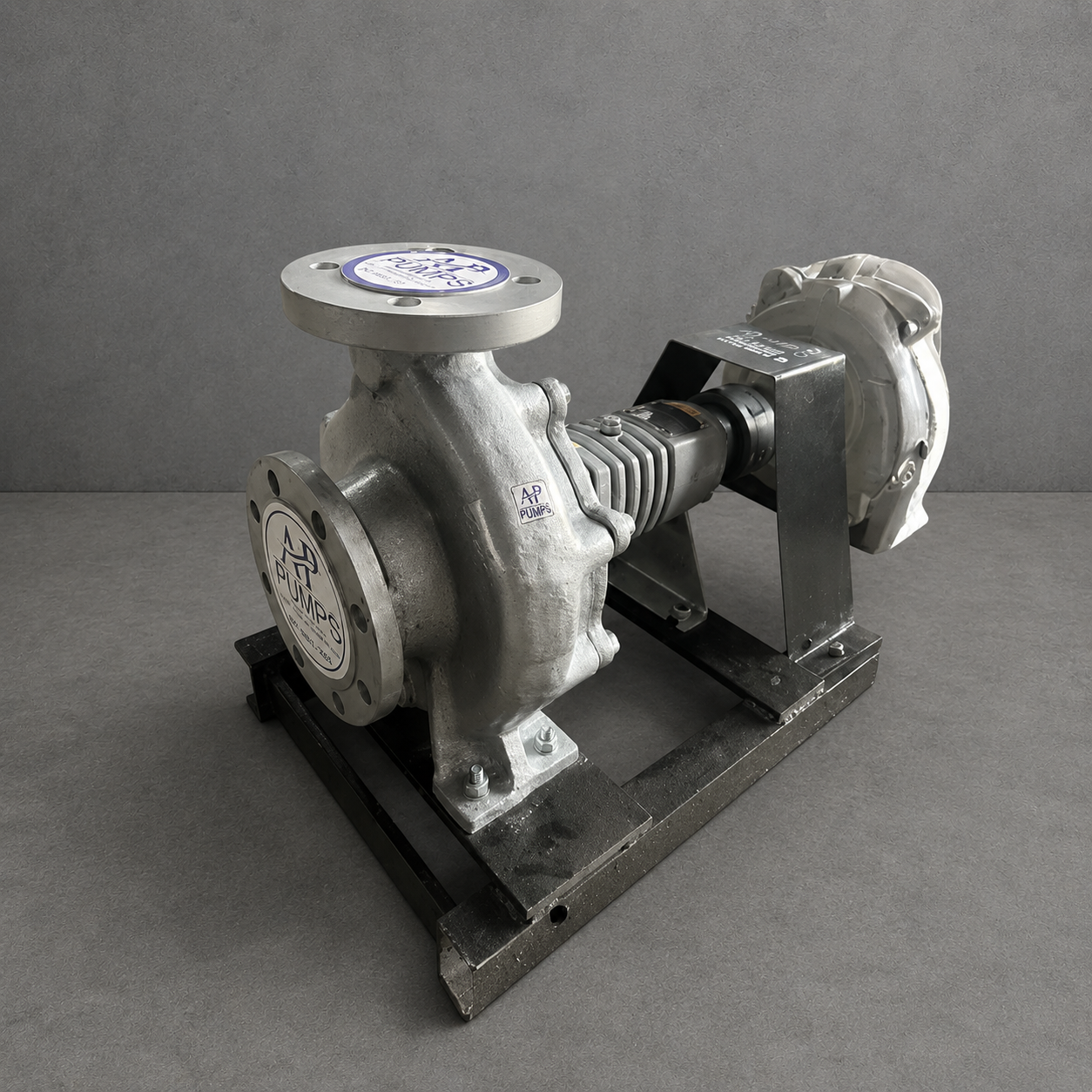

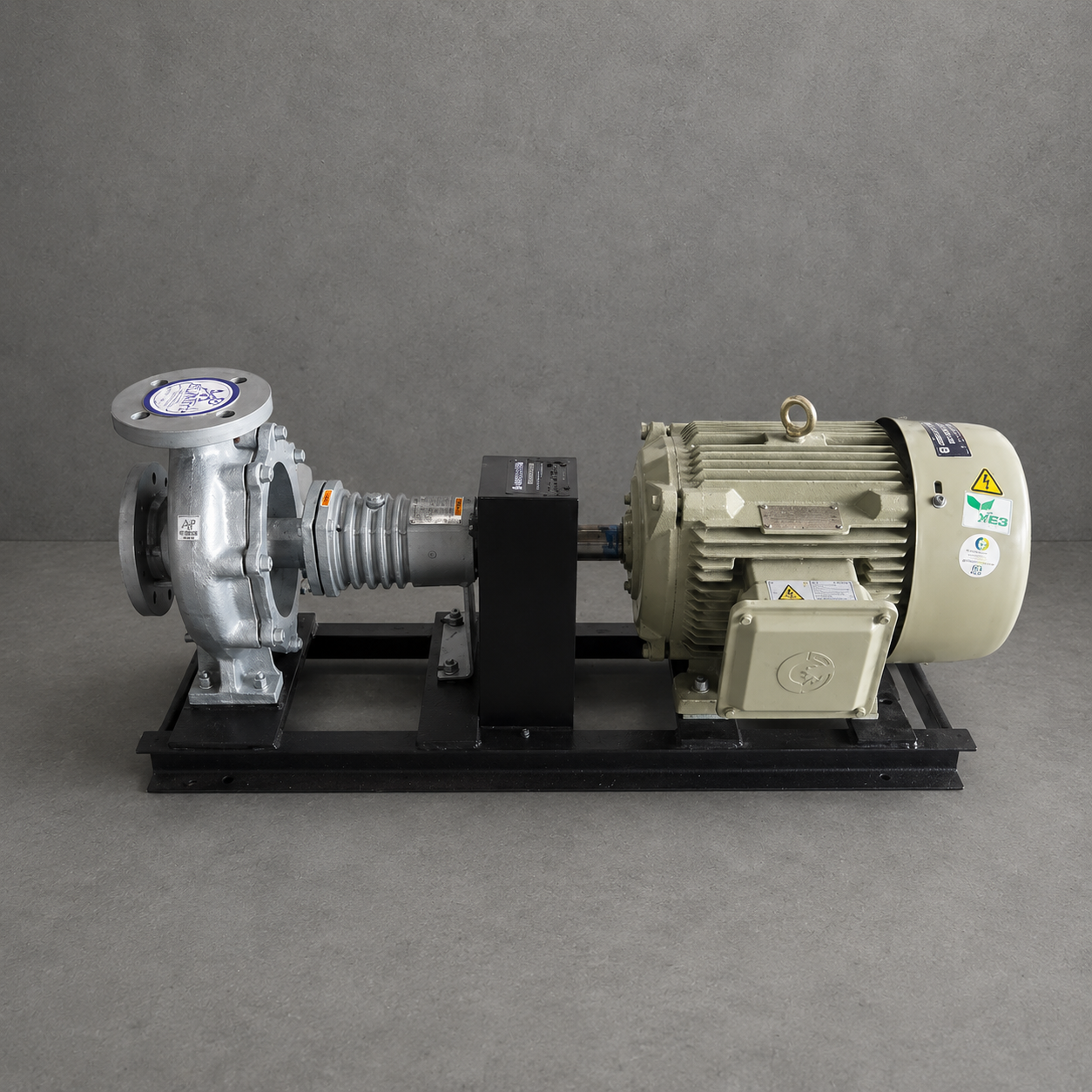

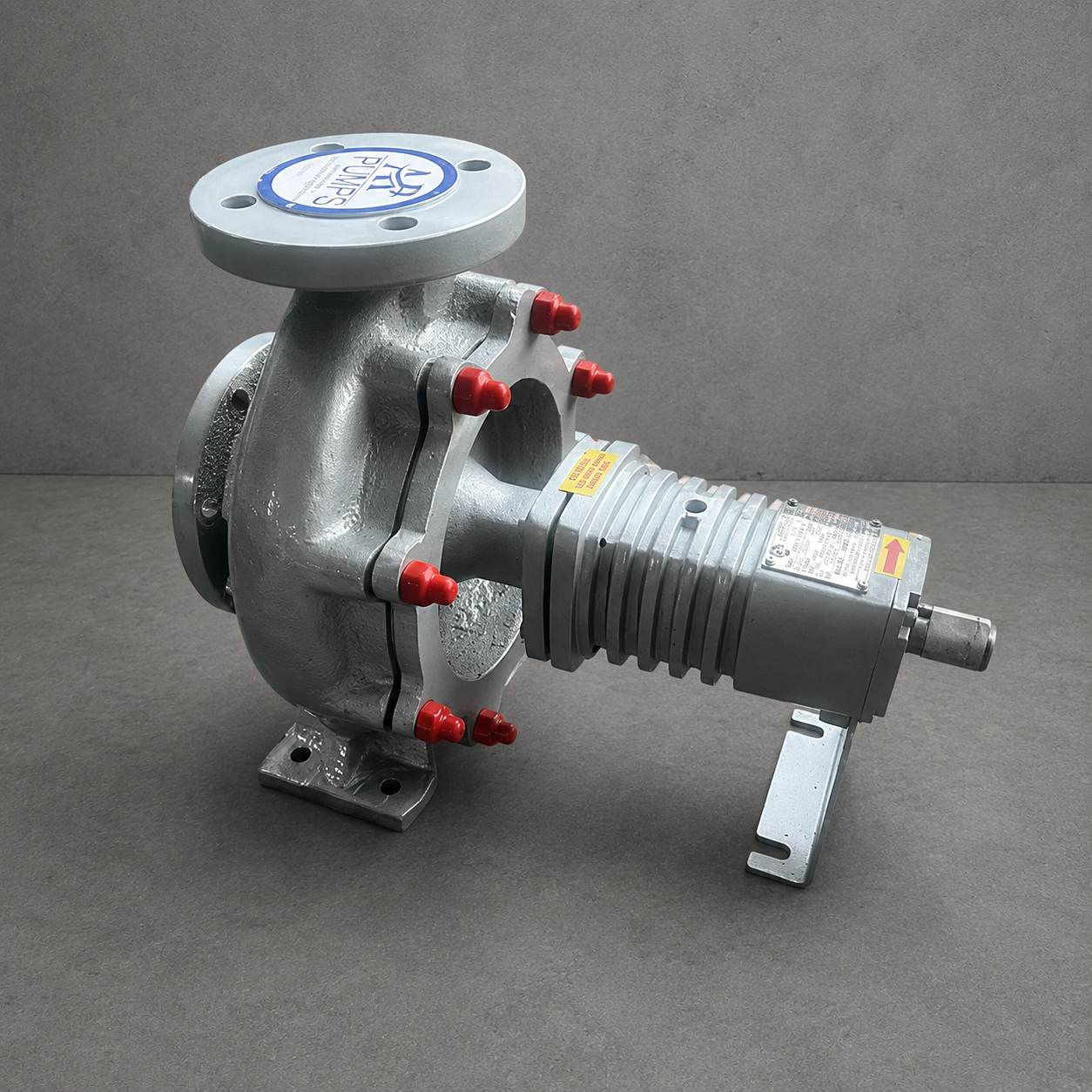

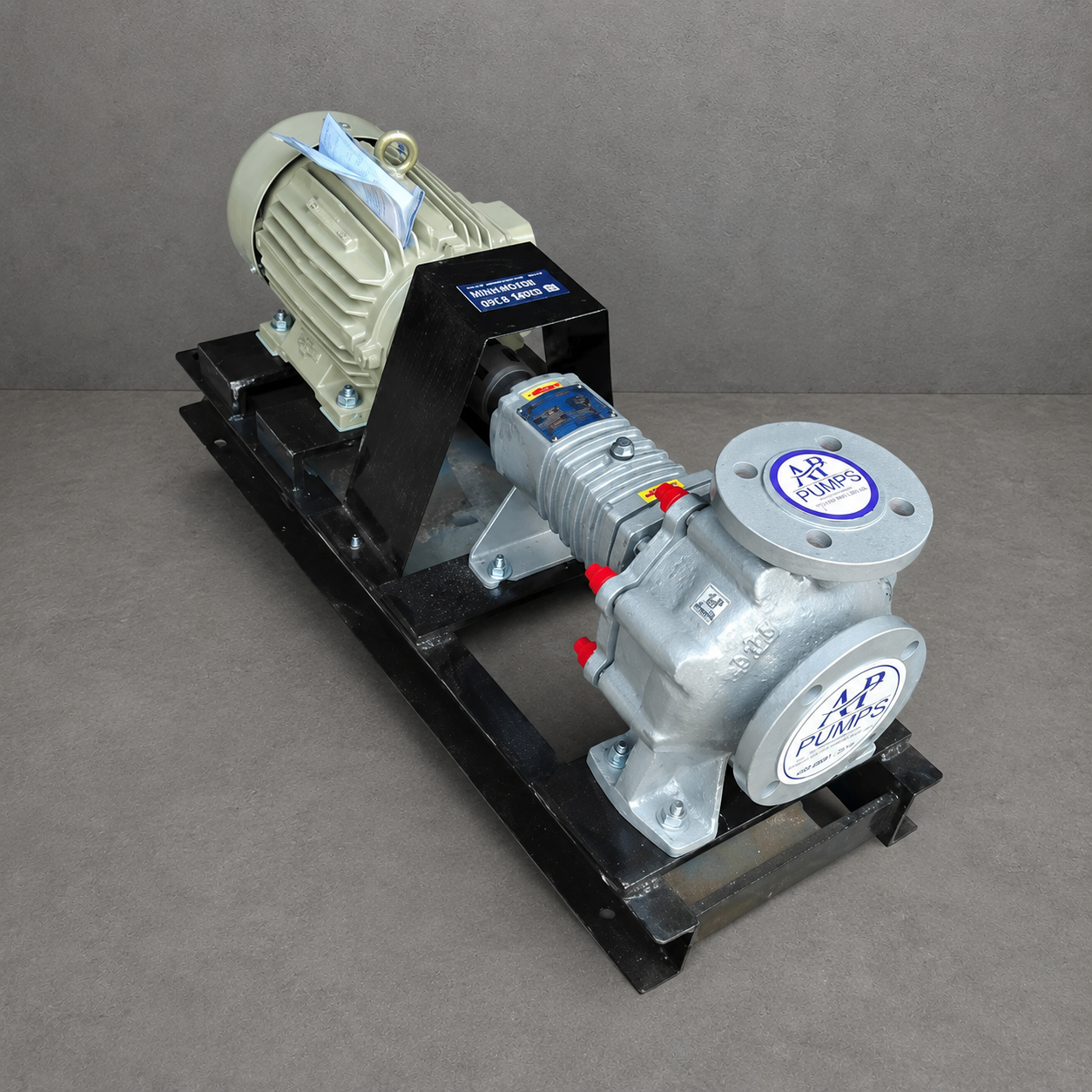

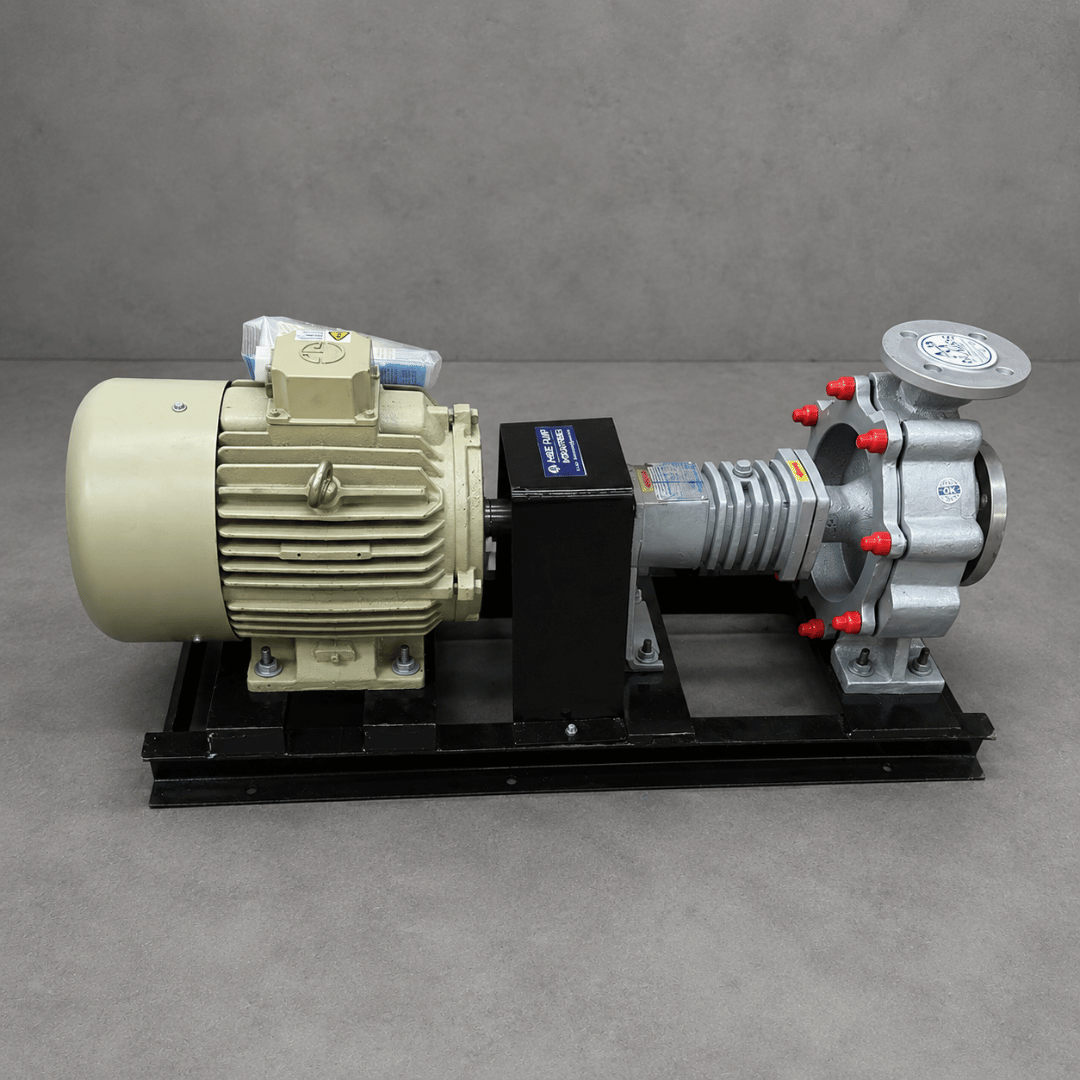

AIR COOLED PUMP
The Air Cooled Pump is specially designed for high-temperature liquid transfer applications where effective heat isolation between the pump and motor is essential. Its construction helps protect the motor section from excessive process heat while maintaining reliable pumping performance.
The pump is equipped with a series of cooling pressure pots located near the front bearing housing or pump casing adapter. This air-cooled arrangement supports dependable operation in demanding applications involving hot oil, boiler fluids, thermic fluids and hot water.
-
Specially engineered for reliable transfer of high-temperature liquids up to 350°C.
-
Air-cooled construction helps isolate process heat from the motor for dependable and safer operation.
A robust high-temperature pumping solution designed for efficient transfer of hot oil, thermic fluids, boiler liquids and hot water in demanding industrial applications.
Make An Appointment
What is the maximum operating temperature of the Air Cooled Pump?
The Air Cooled Pump is designed to handle high-temperature fluids with operating temperatures of up to 350°C, depending on the selected pump configuration and application conditions.
What is the maximum capacity of this pump?
The Air Cooled Pump can handle flow capacities of up to 100 m³ per hour, making it suitable for a variety of high-temperature industrial fluid transfer applications.
Which applications are suitable for the Air Cooled Pump?
It is suitable for hot oil transfer, food industries, boiler applications, thermic fluid circulation and hot water transfer where reliable high-temperature pumping performance is required.
Which materials are available for this pump?
The Air Cooled Pump is available in materials such as Carbon Steel, Stainless Steel 304 and Stainless Steel 316 to meet different temperature, fluid and industrial process requirements.
