AODD PUMP
Technical Specification
- Pressure: 10 Kg/cm²
- Capacity: 800 LPM Maximum
- Connection Size: 1/2" To 3"
- Material of Construction: Polypropylene, PVDF, SS 304, SS 316
- Diaphragm MOC: Aluminium, Neoprene, Santoprene, Teflon, Hypalon, EPDM
- NRV Ball MOC: Neoprene, Viton, Teflon
- Drive Type: Air Operated / Pneumatic

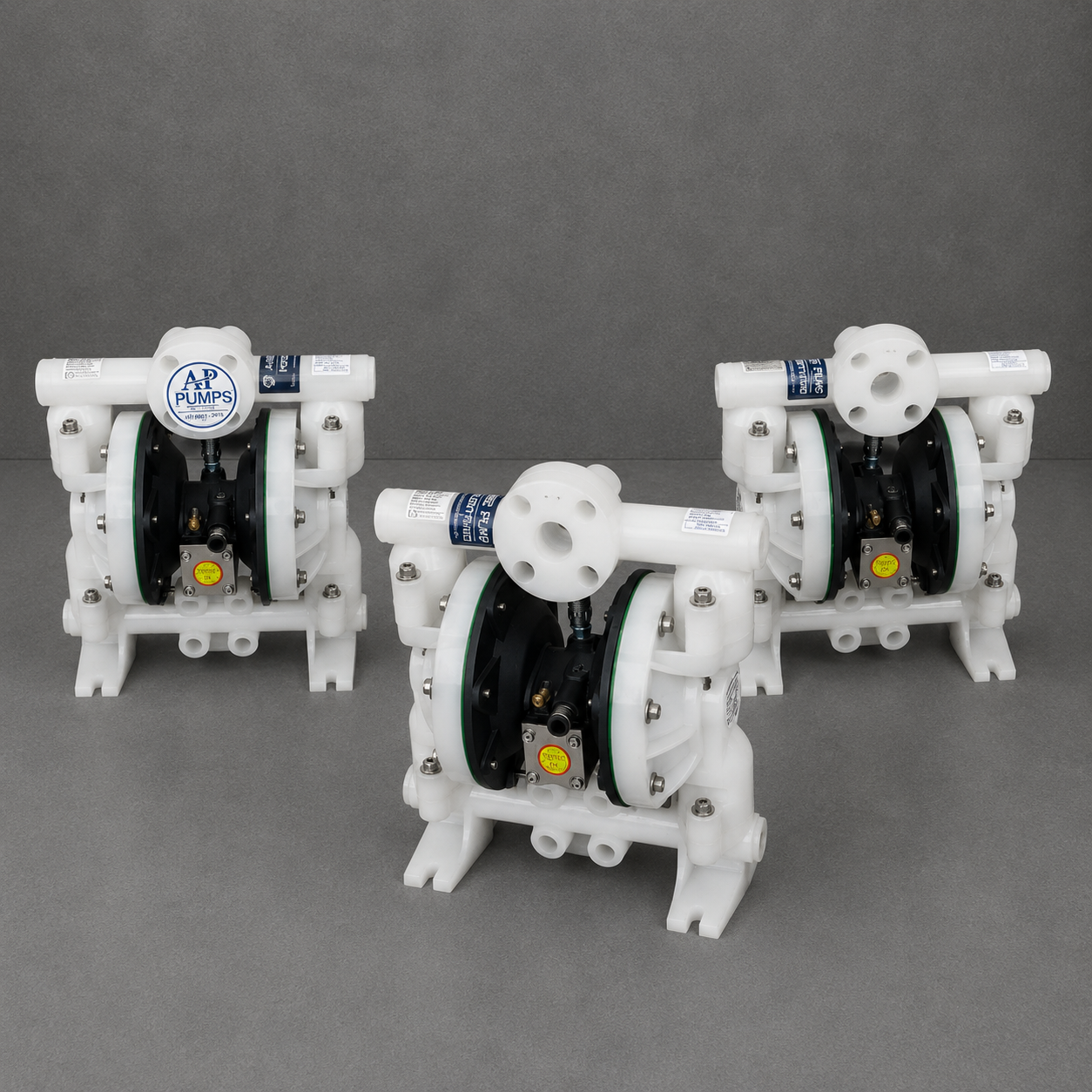

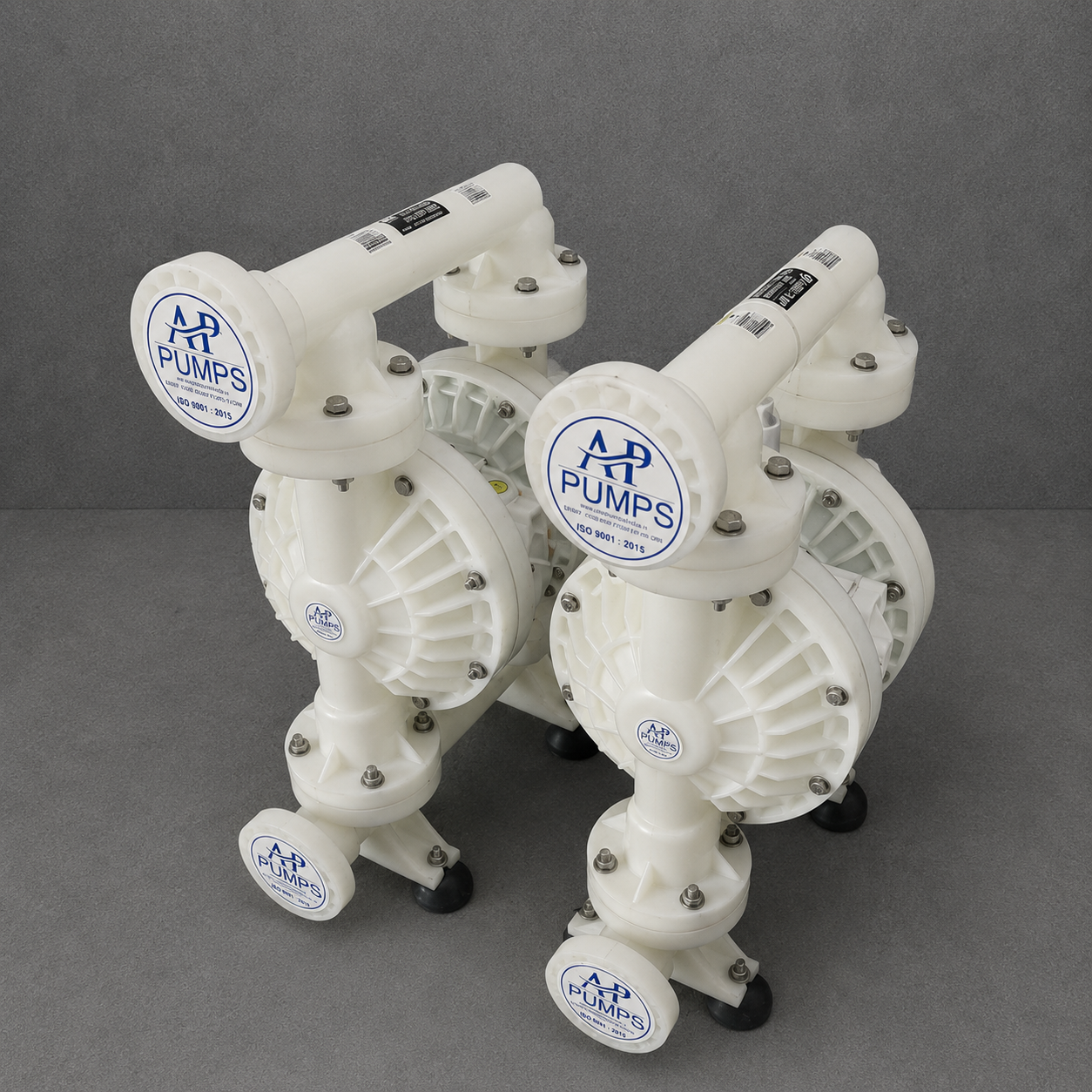

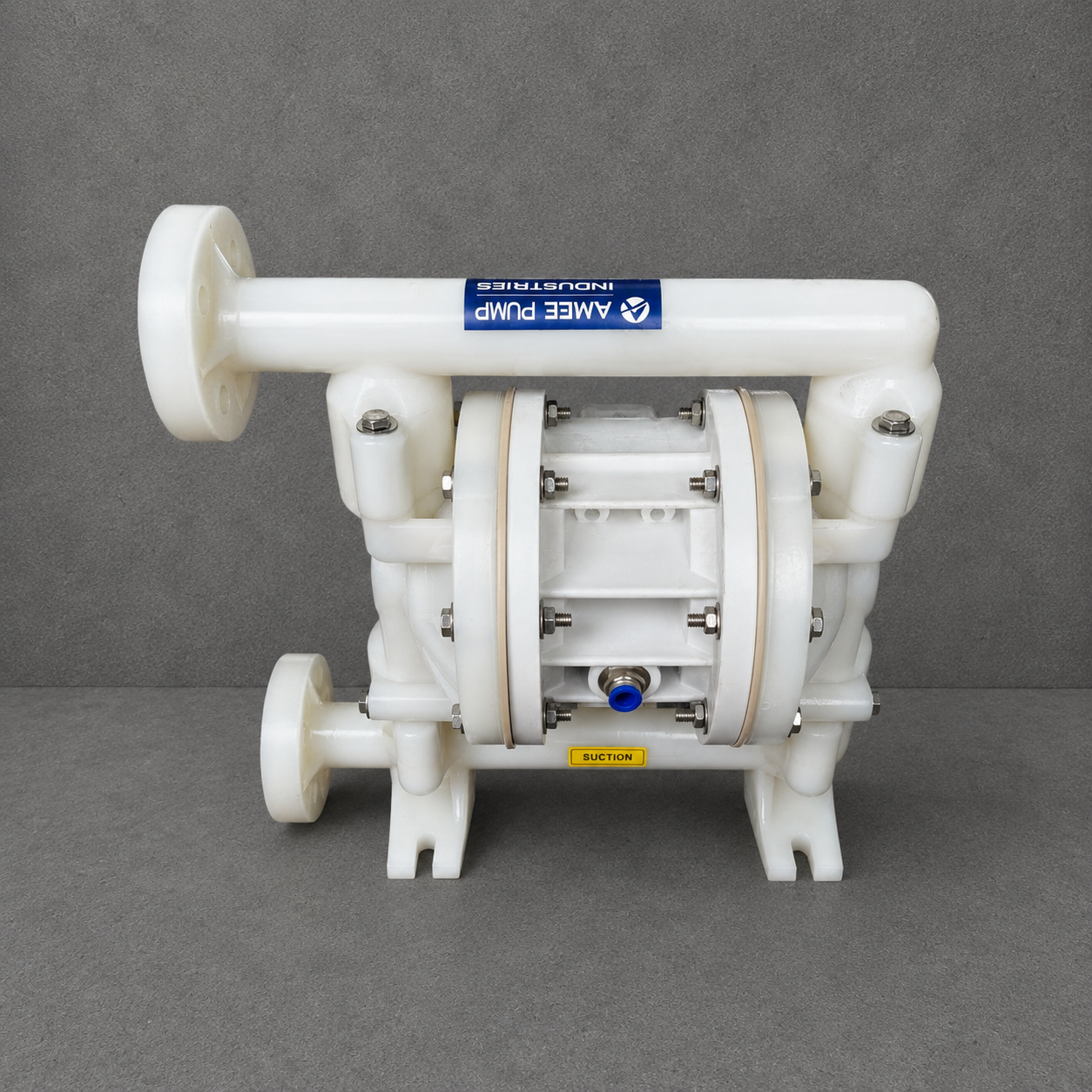

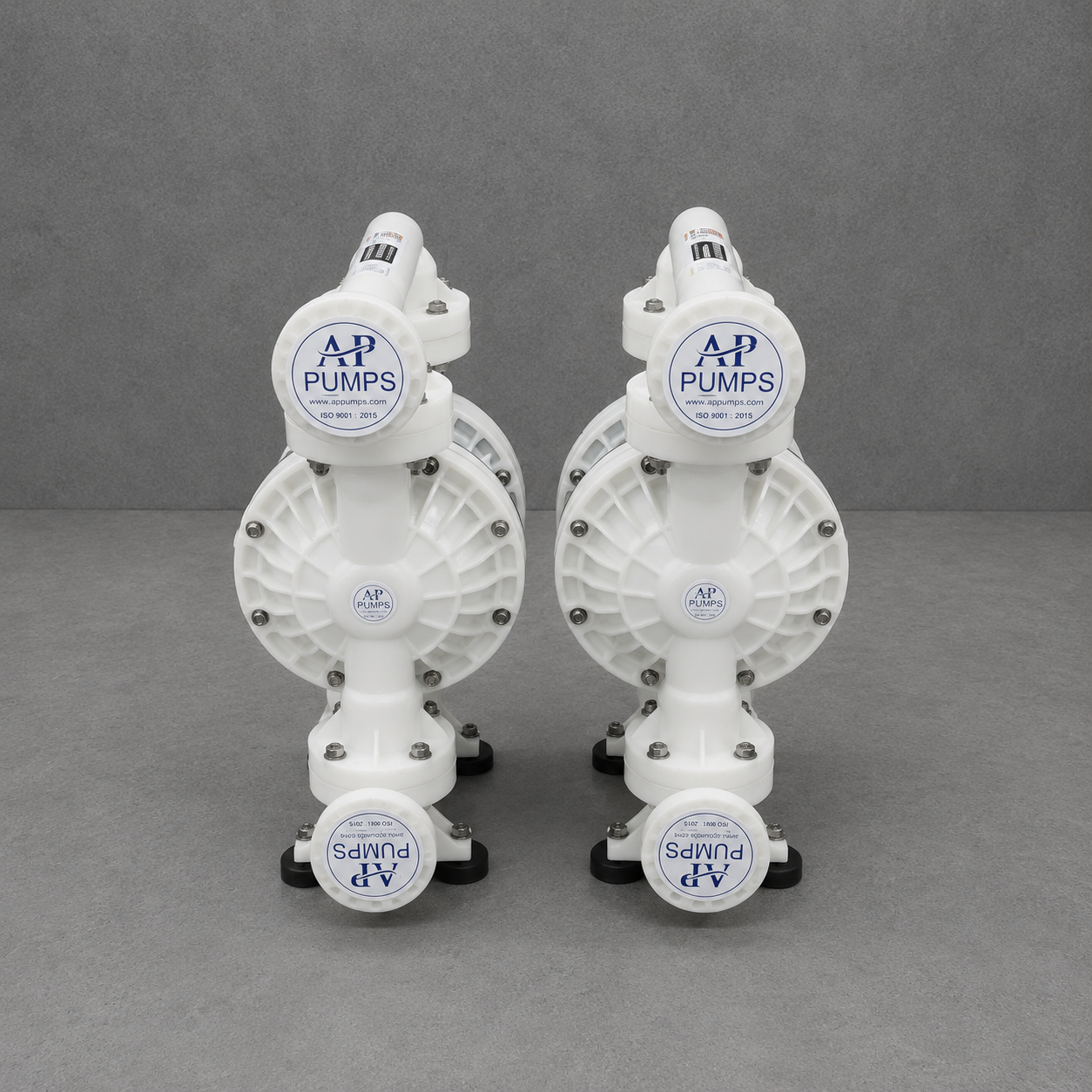

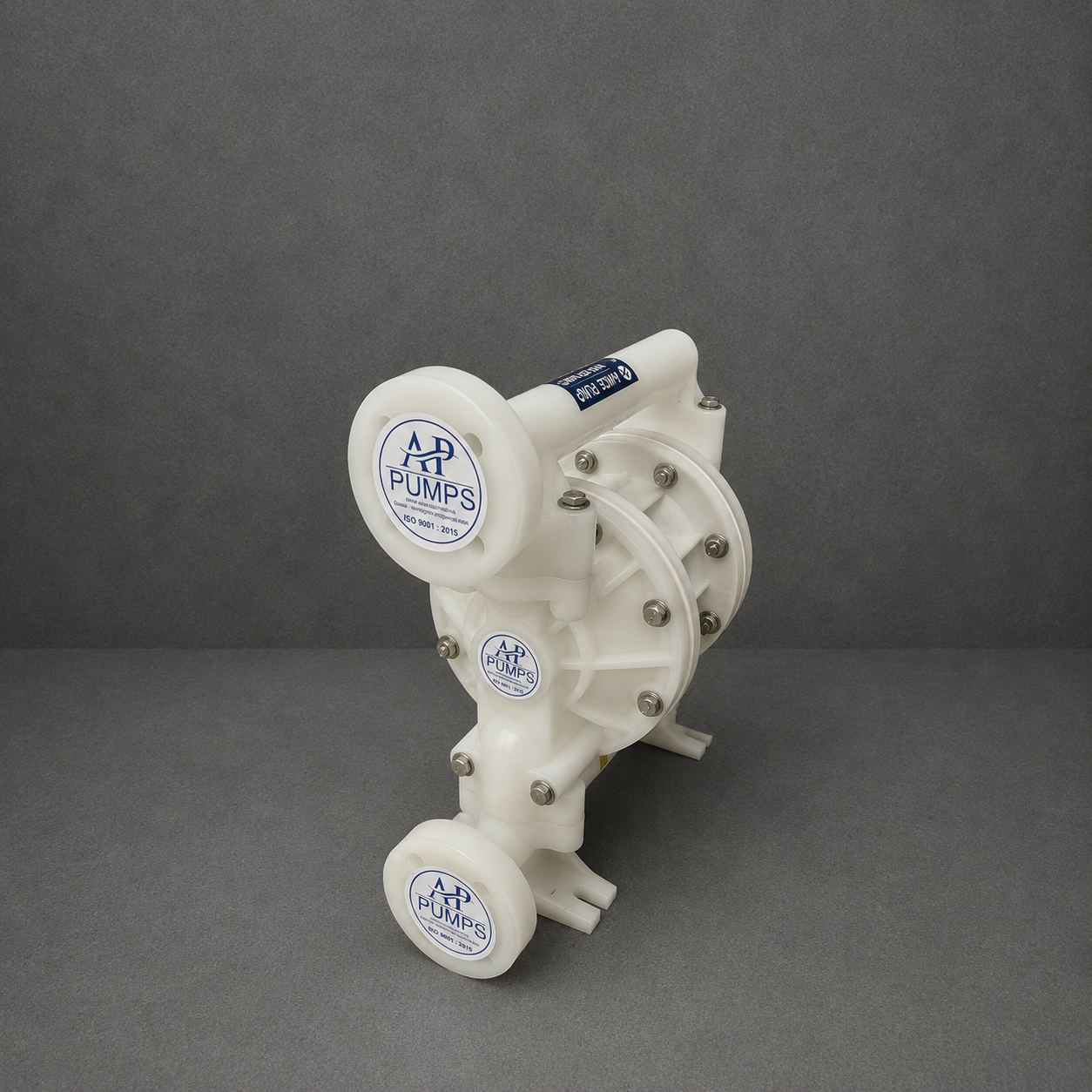

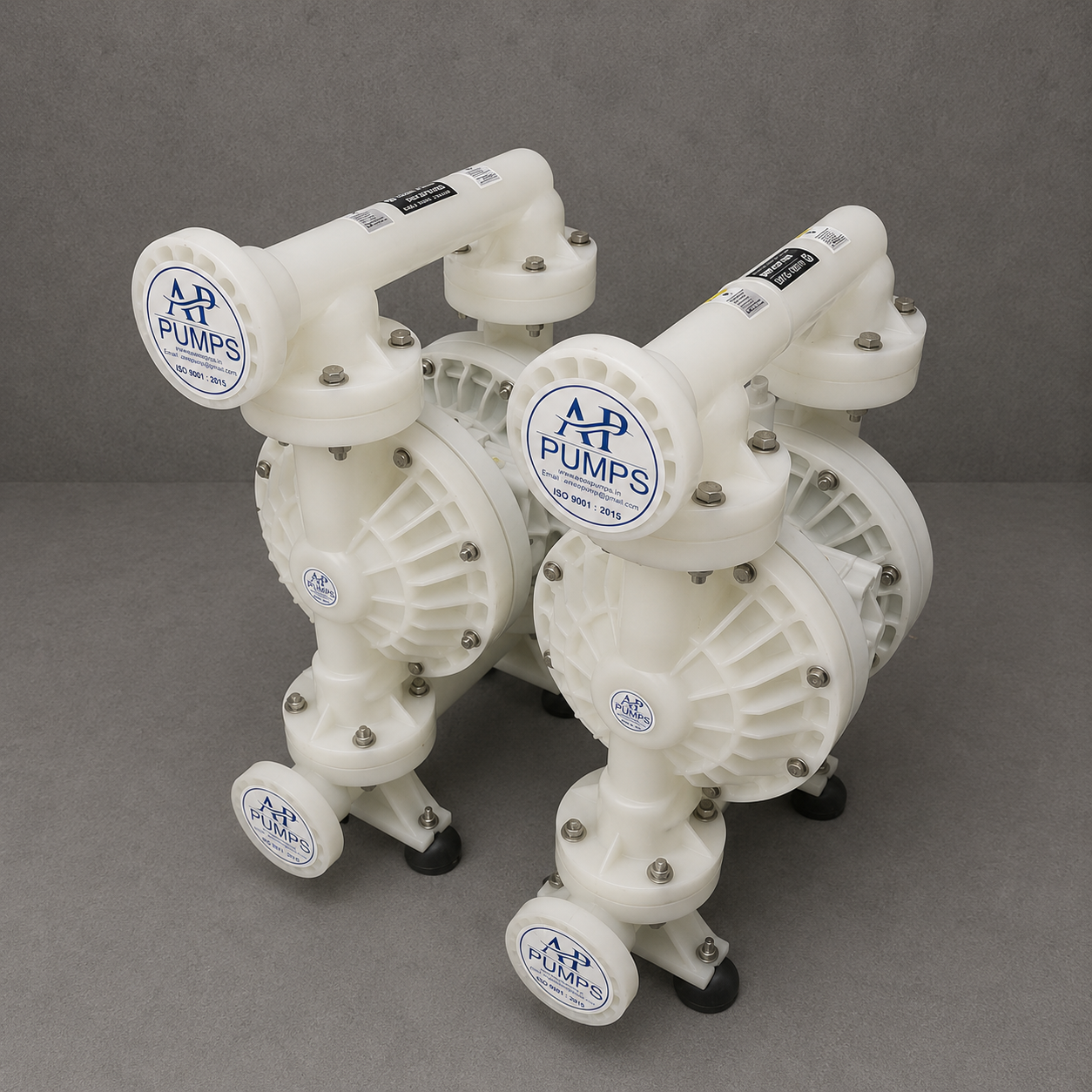

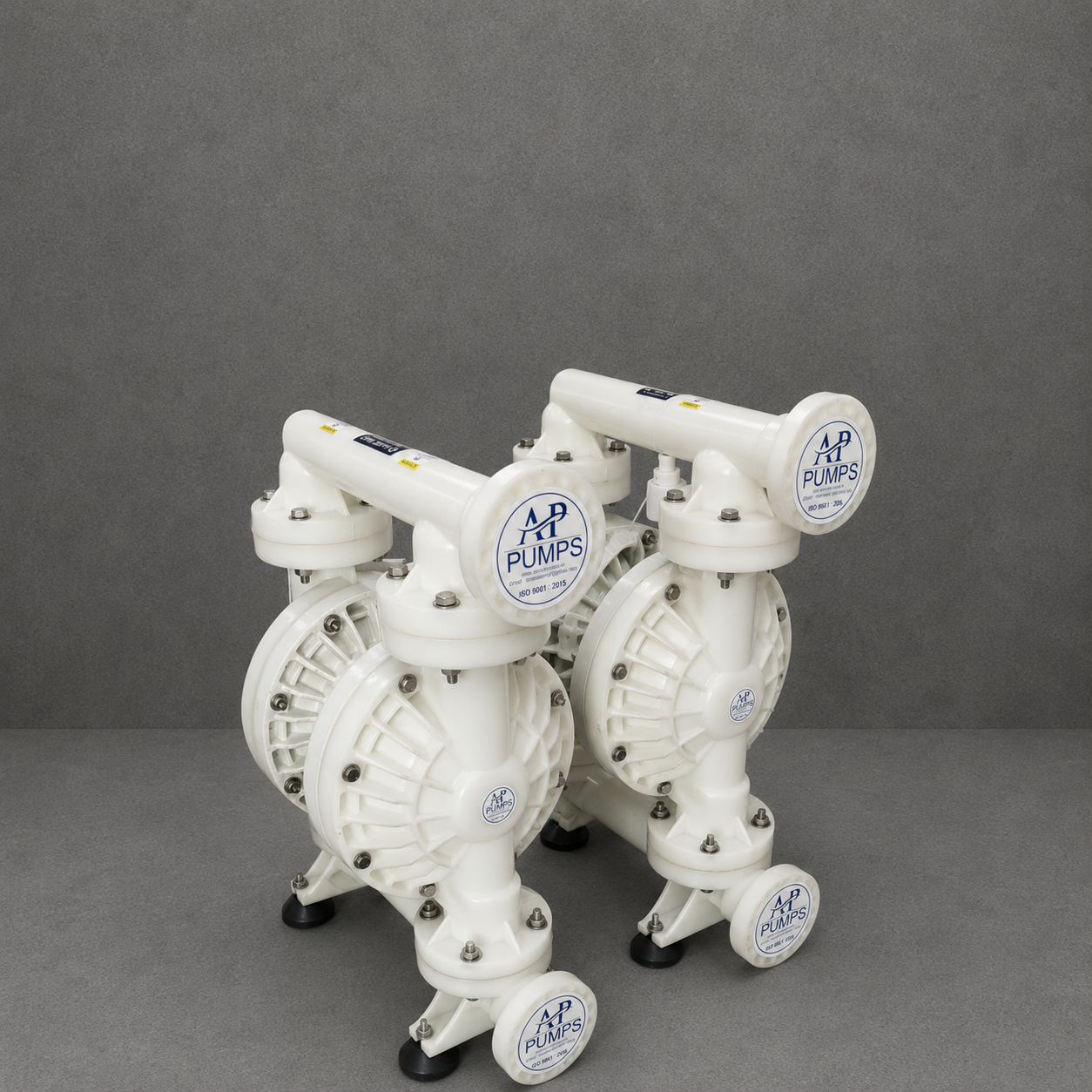

AODD PUMP
The AODD Pump, also known as an Air Operated Double Diaphragm Pump, operates using compressed air supplied by an air compressor. It is a pneumatic pumping solution designed for reliable transfer of various industrial liquids.
The pump is designed for simple operation and low maintenance. Its diaphragm-based working principle makes it suitable for transferring high-viscosity liquids, acids, abrasive fluids, dyes, solvents, inks and other demanding process liquids.
-
Air-operated diaphragm technology provides dependable pumping without the need for an electric drive motor, making it suitable for various industrial fluid transfer requirements.
-
Available in Polypropylene, PVDF, SS 304 and SS 316 construction with multiple diaphragm and NRV ball material options for different process fluids.
A versatile pneumatic pumping solution engineered for efficient transfer of viscous, corrosive, abrasive and process liquids across a wide range of industrial applications.
Make An Appointment
What is the maximum capacity of the AODD Pump?
The AODD Pump is designed for capacities of up to 800 LPM, depending on the selected pump size, compressed-air supply and operating conditions.
How does an AODD Pump operate?
An AODD Pump operates using compressed air from an air compressor. The air alternately moves the diaphragms to draw and discharge liquid through the pump.
Which materials are available for the AODD Pump?
Pump construction options include Polypropylene, PVDF, Stainless Steel 304 and Stainless Steel 316. Diaphragm and NRV ball materials are also available in different options to suit the handled fluid.
What applications are suitable for an AODD Pump?
AODD Pumps are suitable for handling inks, colours, high-viscosity liquids, acids, low-viscosity fluids, abrasive materials, dyes and solvents.
