CENTRIFUGAL BACK
PULL OUT PUMP
Technical Specification
- Head: 150 Mtr. (15 KG/CM2)
- Capacity: 250 m³ / Hour
- Material of Construction: CI, SS 304, SS 316, WCB
- Connection Type: Flange Ended
- Motor Speed: 1440 / 2900 RPM
- Impeller: Closed / Semi Open Type
- Sealing Type: Gland Packing / Mechanical Seal Fitted
- Maximum Temperature: 200–300 Degree
- Applications: Water Transfer, Chemical Transfer, Solvent, Oil, High Acidic Chemical Transfer and Hot Water Transfer

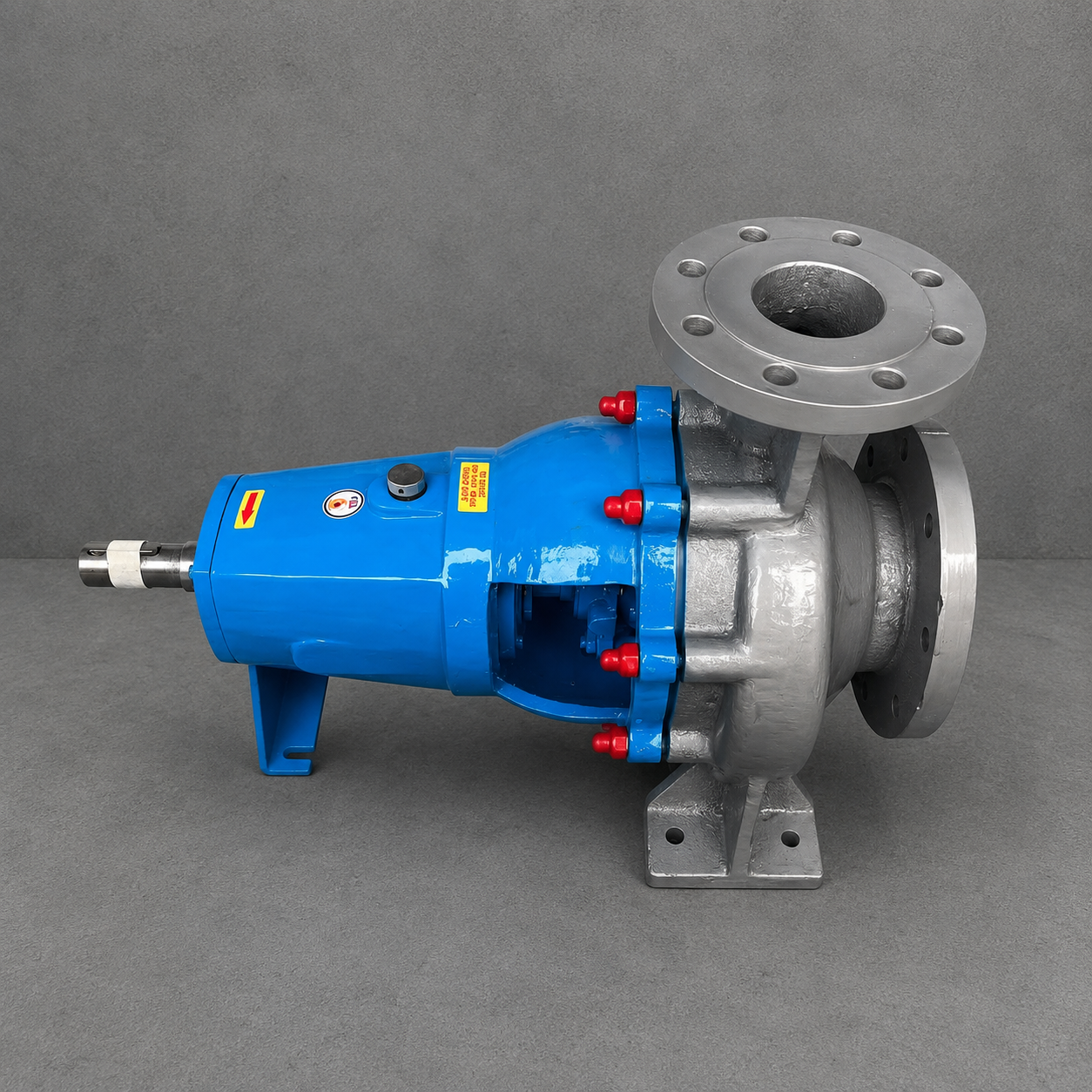

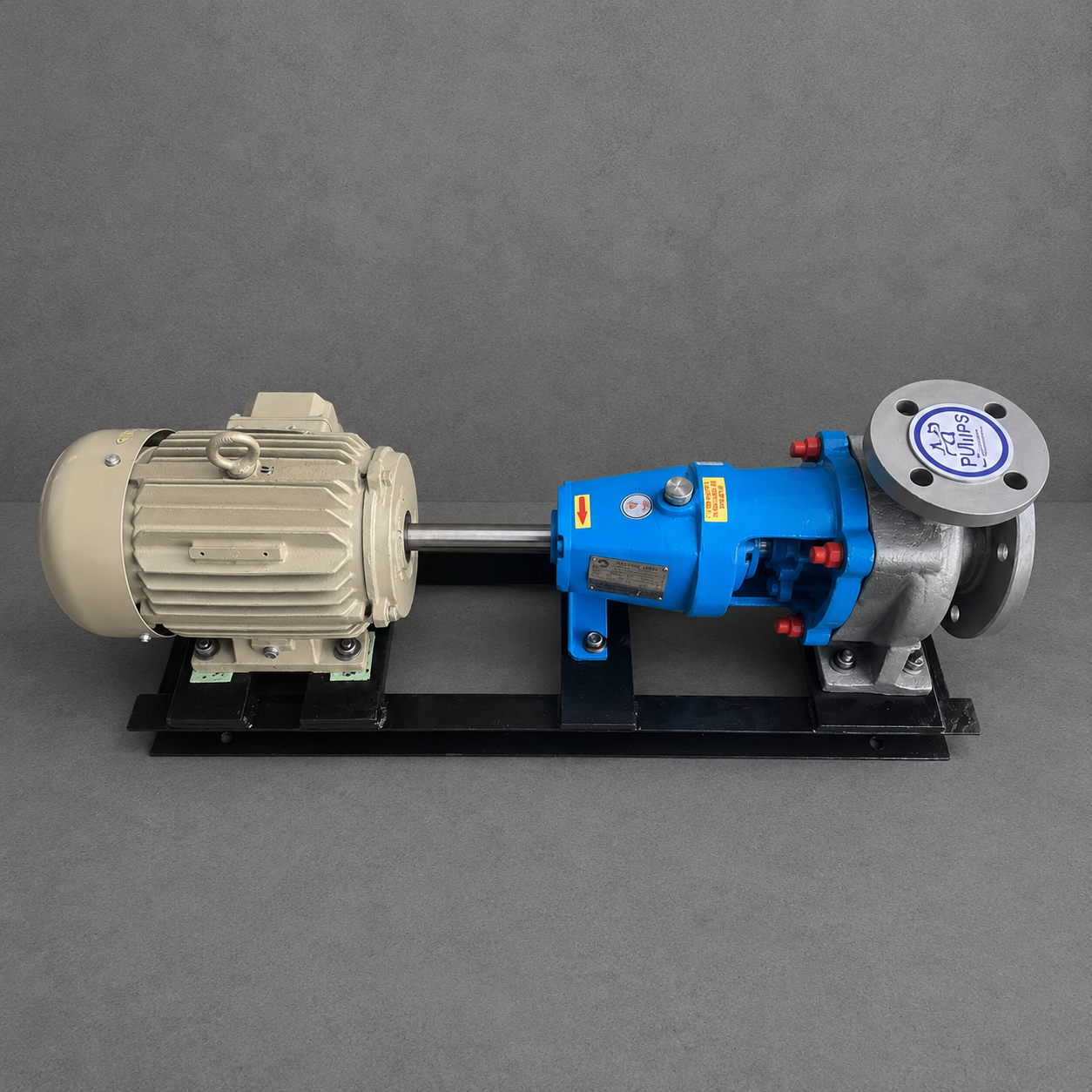

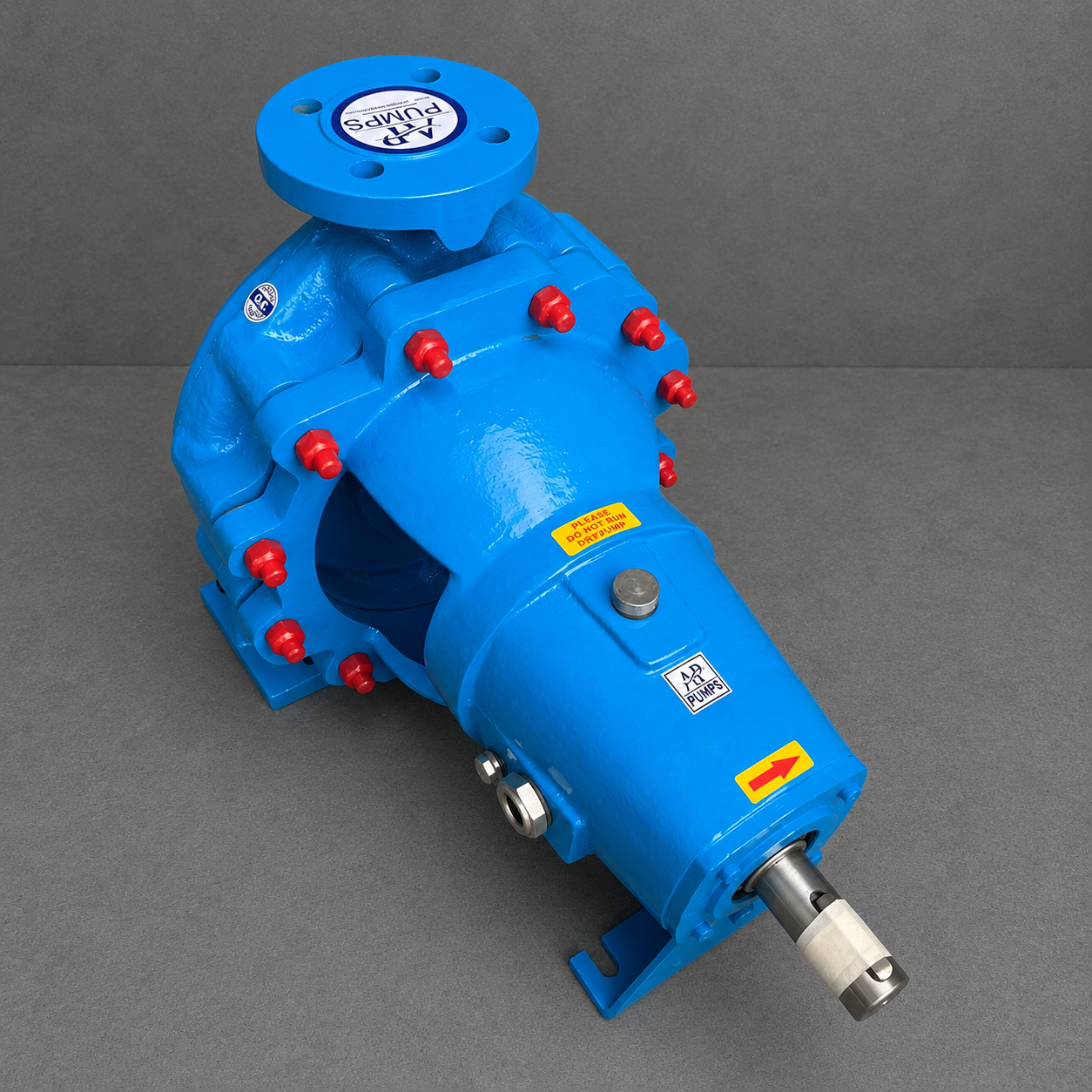

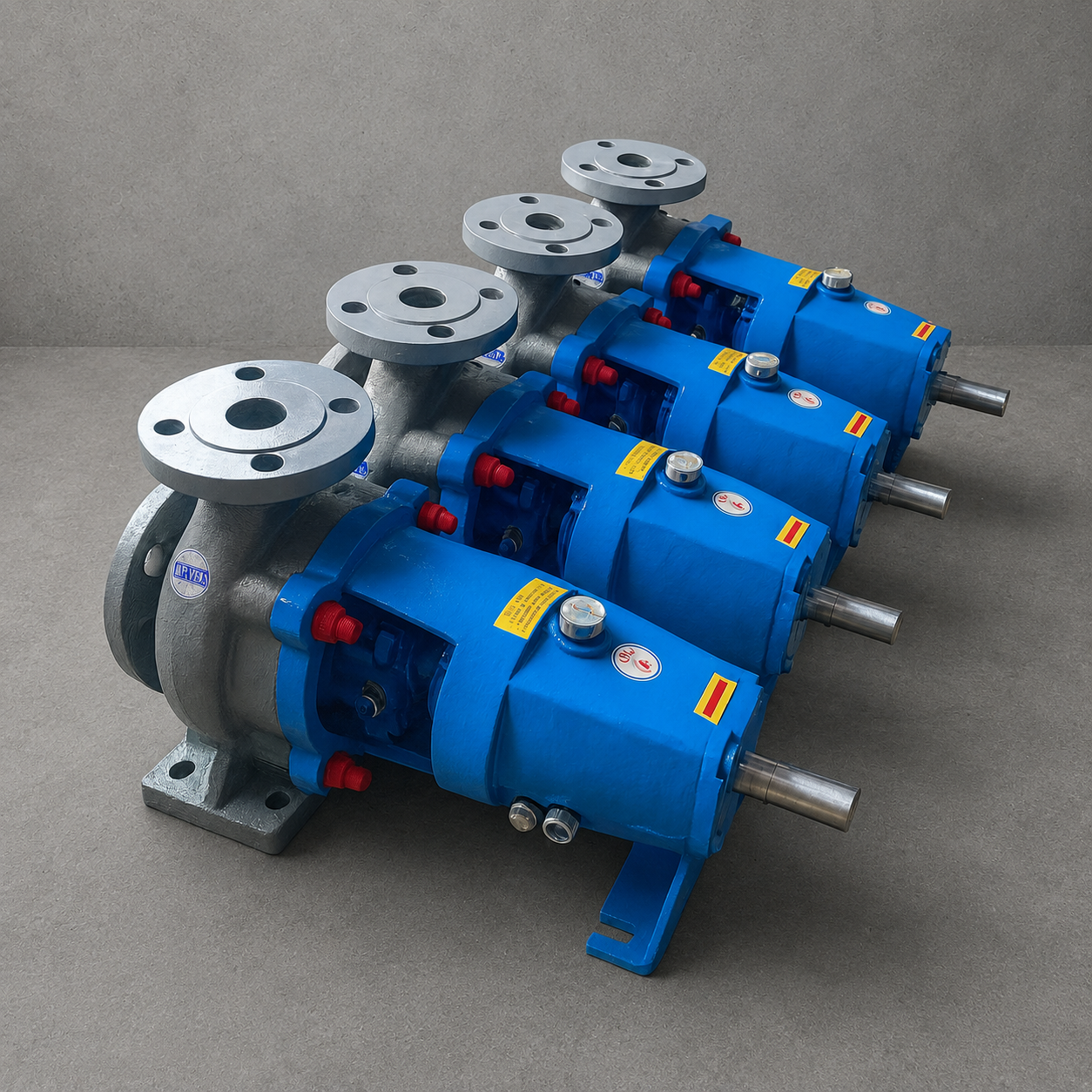

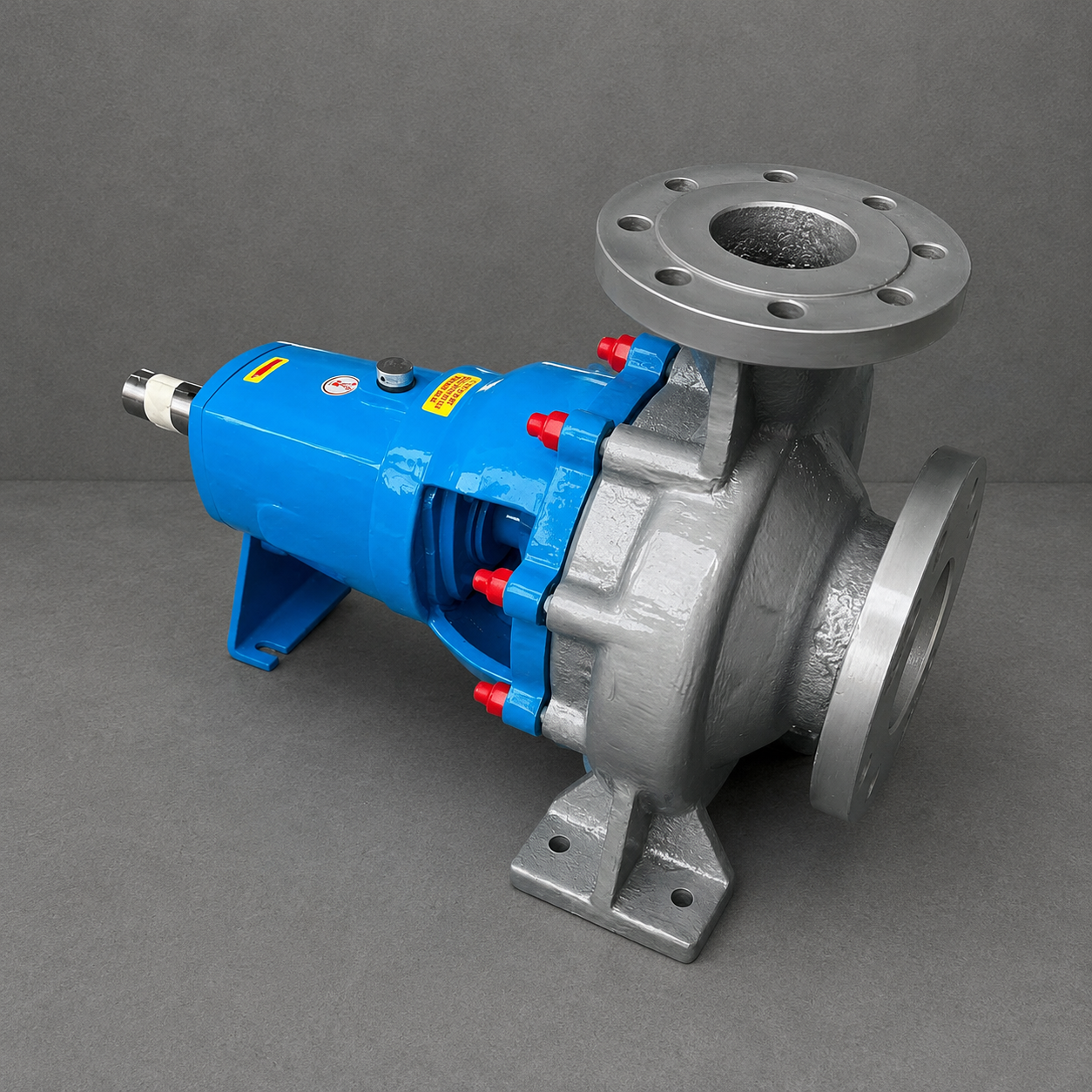

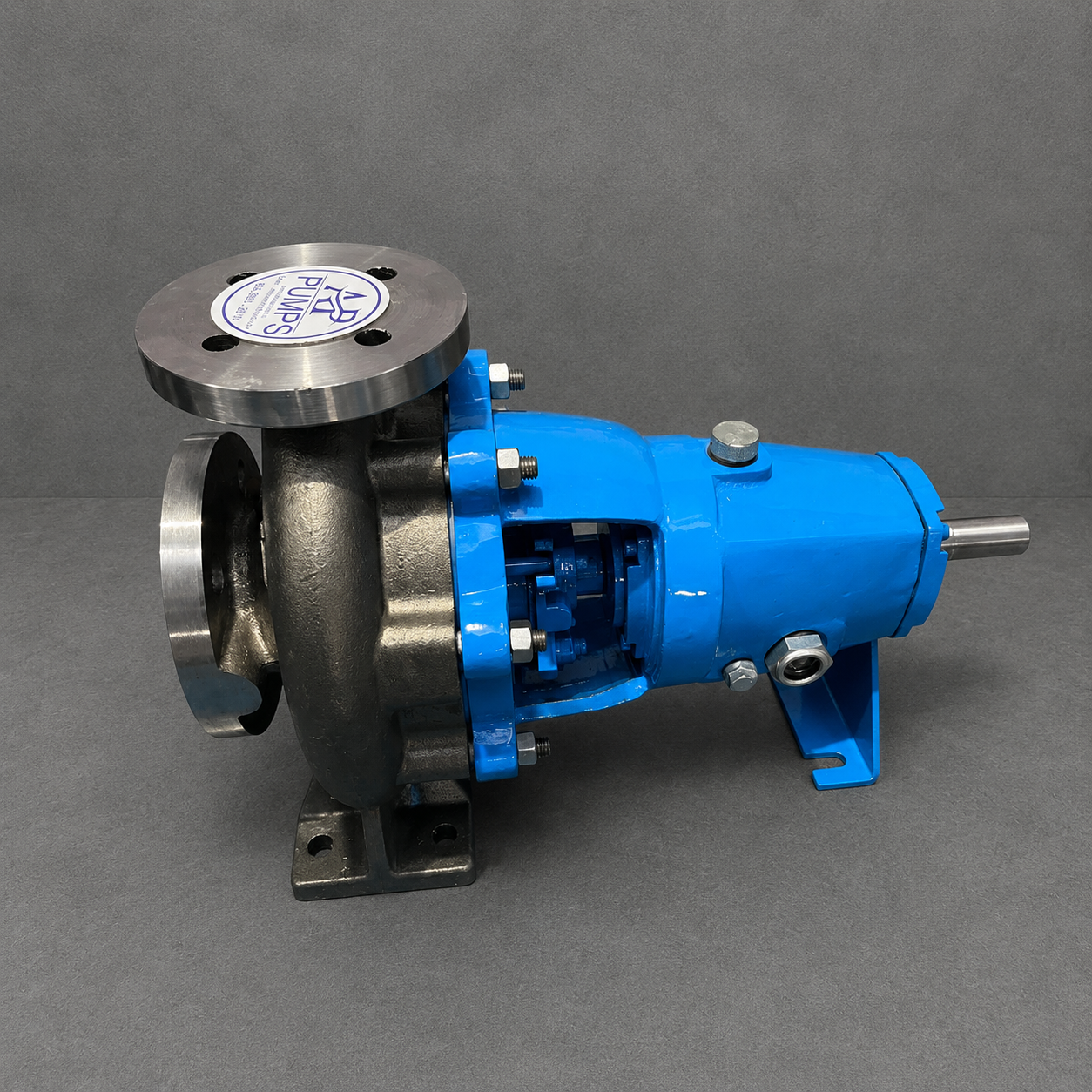

CENTRIFUGAL BACK PULL OUT PUMP
The Centrifugal Back Pull Out Pump is a reliable end-suction centrifugal pump designed for efficient transfer of water, sewage, agricultural fluids, petroleum products and petrochemical liquids. Its robust construction provides dependable performance for a wide range of industrial and commercial pumping applications.
Designed with relatively simple engineering and a convenient back pull-out configuration, the pump allows easy inspection and maintenance without disturbing the connected pipeline. It offers dependable flow performance and is suitable for applications involving abrasive solutions, low to high flow requirements and different operating environments.
-
Back pull-out construction provides convenient inspection, servicing and maintenance without disconnecting the complete piping arrangement.
-
Available in multiple construction materials including CI, SS 304, SS 316 and WCB for diverse industrial applications.
A durable and efficient centrifugal pumping solution engineered for reliable transfer of water, chemicals, petroleum products, solvents and other demanding industrial fluids.
Make An Appointment
What is the maximum capacity of the Centrifugal Back Pull Out Pump?
The Centrifugal Back Pull Out Pump is designed to handle flow capacities of up to 250 m³ per hour, depending on the selected pump model, operating head and application requirements.
Which materials are available for this pump?
The pump can be manufactured using materials such as Cast Iron (CI), Stainless Steel 304, Stainless Steel 316 and WCB, allowing suitable material selection according to the fluid and industrial application.
What applications are suitable for this pump?
It is suitable for water transfer, chemical transfer, solvent handling, oil transfer, hot water applications and the transfer of various acidic and industrial liquids.
What is the advantage of the back pull-out design?
The back pull-out design makes maintenance easier by allowing major rotating components to be inspected or serviced without removing the pump casing from the connected pipeline.
