MAGNETIC DRIVE
PUMPS
Technical Specification
- Head: Up To 40 Mtr
- Capacity: 10 LPM To 750 LPM
- Temperature: Up To 150°C
- Material of Construction: PP, PVDF, SS 316, SS 304
- Drive Type: Magnetic Drive
- Seal Type: Seal-Less Design
- Operation: Zero Leakage / Zero Slippage
- Industry & Application: Chemical Industries, Pharmaceutical Industries, Textile Processing & Dyeing, Electroplating Industries, Agitation & De-scaling of Refrigeration Systems, Water Processors

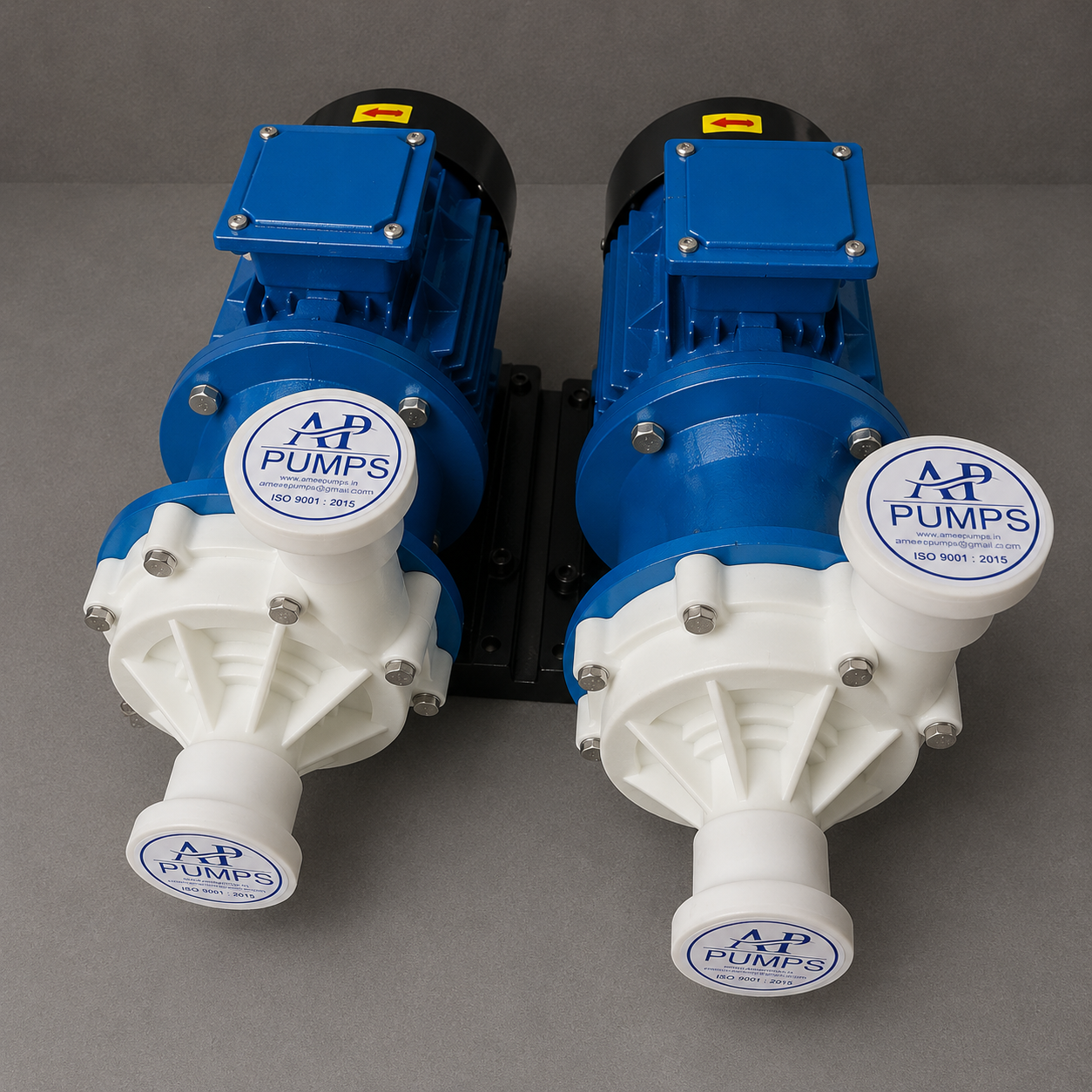

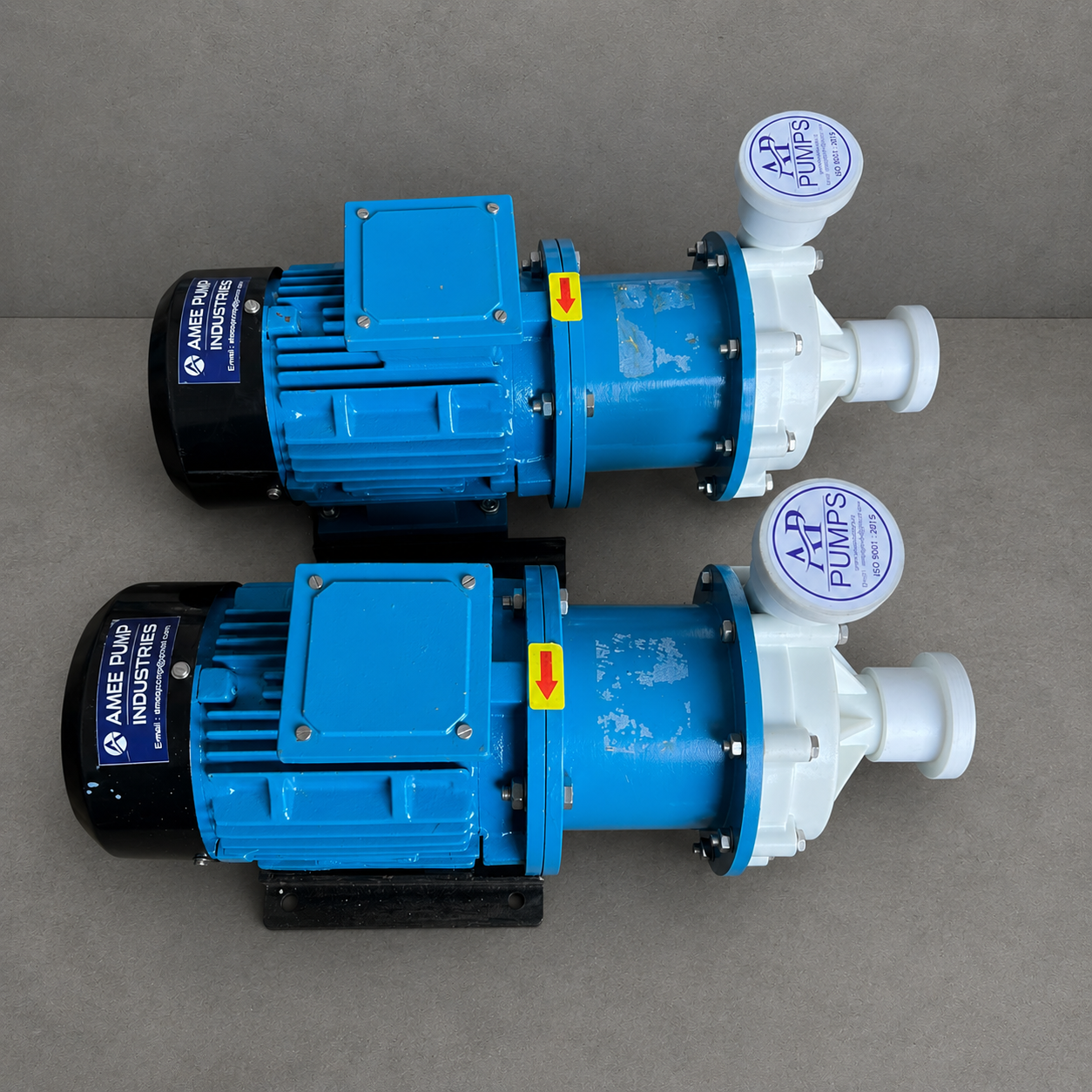

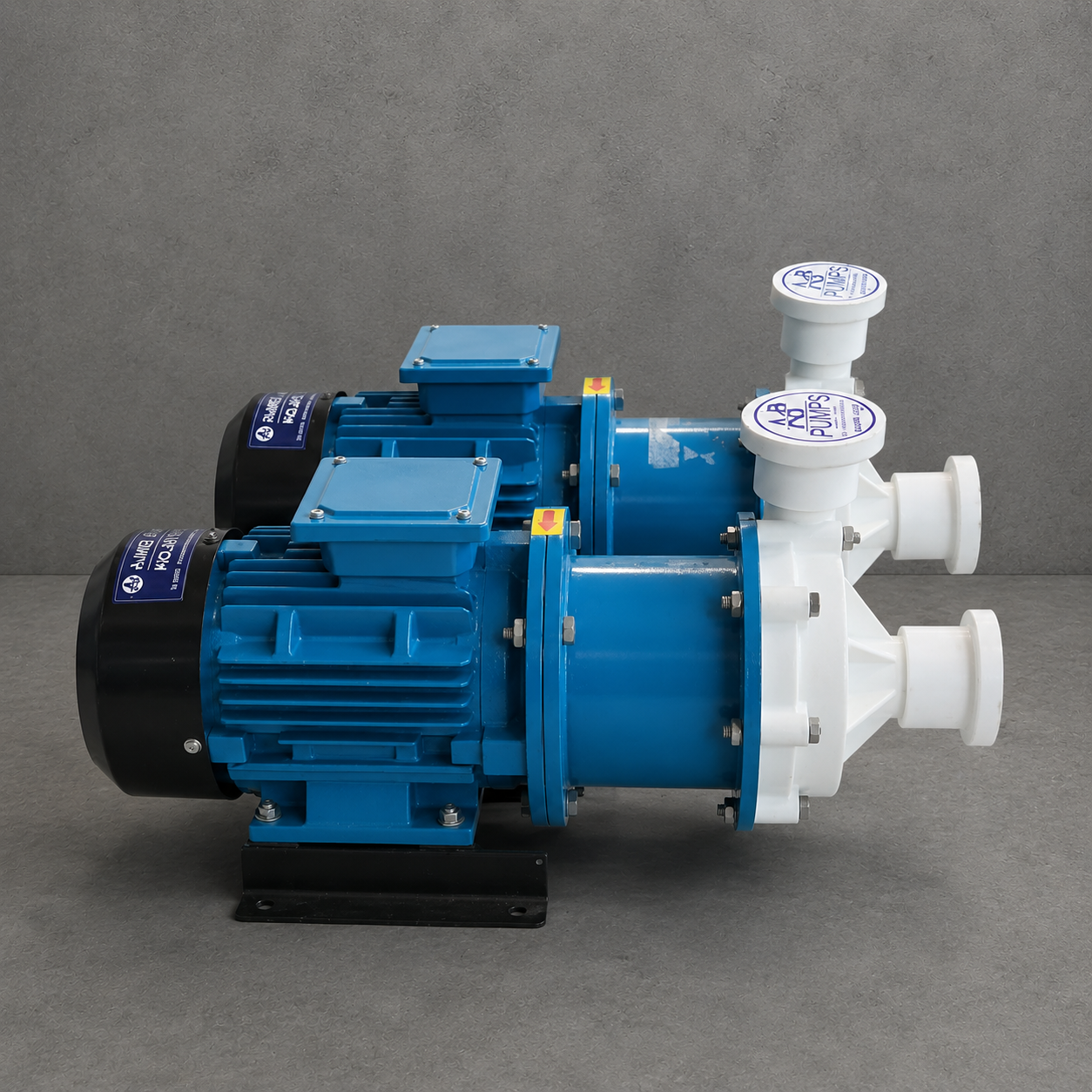

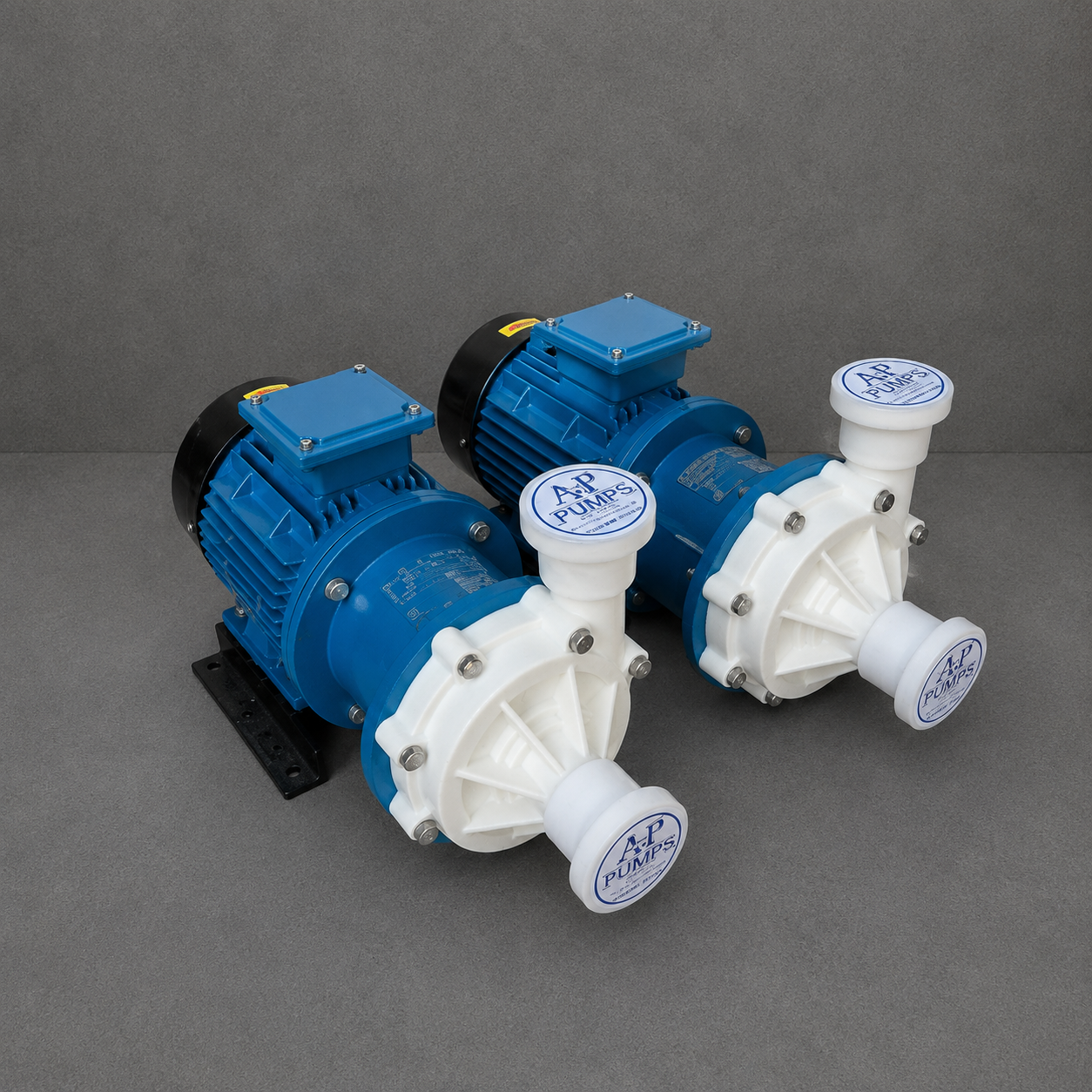

MAGNETIC DRIVE PUMPS
Magnetic Drive Pumps are designed as 100% leak-proof pumping solutions without the use of conventional shaft seals. The impeller receives rotational motion through magnetic drive technology, helping provide safe and efficient fluid transfer.
High-power permanent rare magnets are used in the magnetic drive arrangement, providing high mechanical efficiency with zero slippage. This design makes the pump particularly suitable for chemical and process industries where leakage prevention is an important requirement.
-
Seal-less magnetic drive technology helps provide leak-proof operation without conventional shaft seals, making it suitable for handling sensitive and aggressive industrial fluids.
-
Available in PP, PVDF, SS 304 and SS 316 construction for applications across chemical, pharmaceutical, textile and process industries.
An efficient and reliable magnetic pumping solution engineered for leak-free handling of chemicals, process liquids and industrial fluids in demanding operating environments.
Make An Appointment
What is the maximum capacity of the Magnetic Drive Pump?
The Magnetic Drive Pump is available with capacities ranging from approximately 10 LPM to 750 LPM, depending on the selected model and operating requirements.
Which materials are available for Magnetic Drive Pumps?
Magnetic Drive Pumps are available in PP, PVDF, Stainless Steel 316 and Stainless Steel 304 construction for various chemical and industrial applications.
Why are Magnetic Drive Pumps considered leak-proof?
Magnetic Drive Pumps use a seal-less magnetic coupling arrangement instead of a conventional shaft seal. This helps prevent leakage during normal pump operation.
Which industries use Magnetic Drive Pumps?
These pumps are used in chemical industries, pharmaceutical industries, textile processing and dyeing, electroplating, refrigeration de-scaling and water processing applications.
