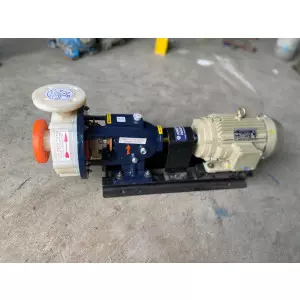

Polypropylene Pumps
Polypropylene Pumps Details
AMEE INDUSTRIES is a leading manufacturer of SPP Series – Known as Polypropylene Pumps.
Our polypropylene pumps are designed especially for high corrosive chemicals where metal are not recommended or its cost is high. This pumps are centrifugal corrosion resistant with horizontal radially split one piece volute casing design fitted with semi open impeller single entry single stage for smooth running performance against corrosion according to the standards.
In polypropylene pumps high alumina ceramic sleeve is used to protect shaft from any type of corrosion and abrasion. Mechanical seal prohibit the leakage from the pumps and best cast iron heavy duty oil lubricated bearing housing helps for achieving maximum strength of pumps.
Technical Specification
Type: Centrifugal Polypropylene Pump
Capacity: up to 295 m3/hr
Head: up to 60 mtr
Pressure: up to 5 kg/cm2
Size: 25 mm to 100 mm
Speed: up to 3500 rpm
Temperature: up to 70° C
M.O.C.:PP, GRP, PVDF, UHMWPE etc…….
Salient Features
Low maintenance due to minimum components.
Leak proof and also run dry without damage in rotating parts.
Compact design
Polypropylene Pumps are used in following applications and industries
Corrosive liquid handling
Pharmaceutical industries
Dyes and pigment industries
Effluent treatment
Slurry
Fertilisers plants
Paper and pulp industries
HCL acid handling
Caustic soda plants
Thermal and atomic power plants
Scrubbing process
Electroplating
Steel rolling mills
